By Chamod Kalupahana, Nik Ravojt & Parul Sinha

tl;dr

Hello! This is a short-ish write up of our ARBOx project and the extension we did on it post-course. We found a paper that showed that refusal is mediated in one feature direction, and our hypothesis was that a model and a fine-tuned uncensored model would be identical apart from this refusal direction. We found that removing the refusal direction from the base model means it predicts a very similar next-token probability distribution to the uncensored model for a dataset of prompts.

We wanted to extend to see what other differences are between the models. We observed a component of this difference was associated with closed and open-endedness of the prompt (Name/List vs Generate/Design/Build), which we naively measured causality by intervening towards and against this direction and measuring the character length of the model output. We found a weak correlation of this direction increasing the open-endedness and increasing the length of the model’s output, but not decreasing the length of the model’s output when decreasing this direction.

Initial Paper

For our ARBOx project, I worked with Nik and Parul to extend this paper, which was the output of Neel Nanda’s MATS stream in Winter 2024. It showed that refusal direction is only mediated by a single feature direction. They showed that the refusal direction of a model can be found via:

$Refusal = Harmful - Harmless$

The refusal direction appears to be localised in specific mid-layers. We validated the paper result, showing that refusal direction is strongest in layer 19 (for model Yi-6B-Chat), plotted in Figure 1.

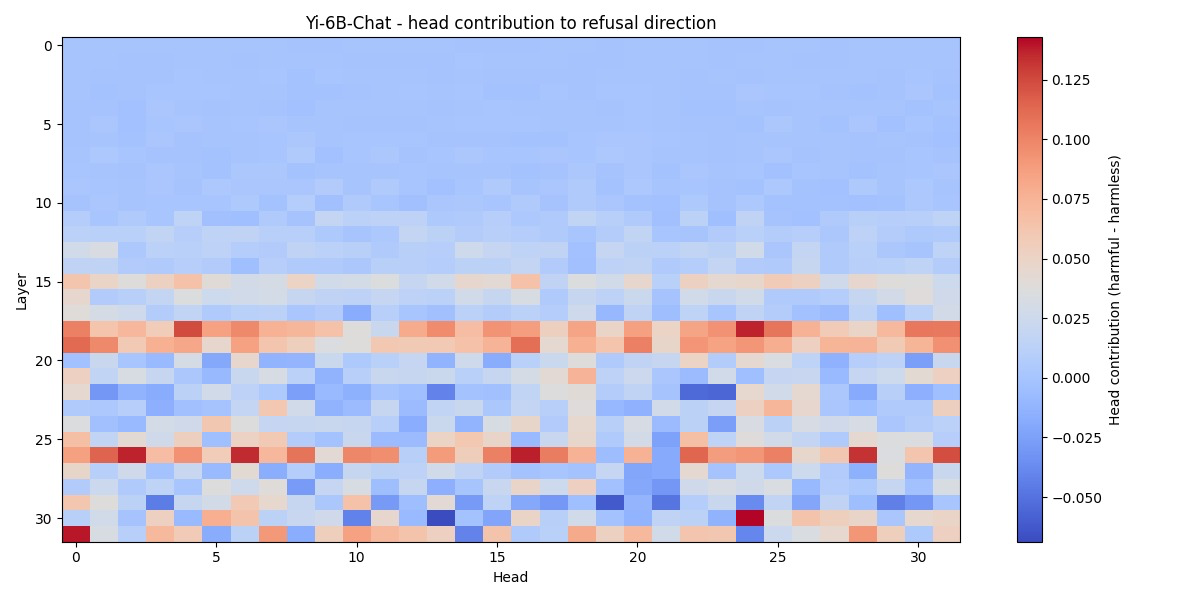

Contribution to the refusal direction for each head in each layer in Yi-6B-chat.
Figure 1. Contribution to the refusal direction for each head in each layer in Yi-6B-chat.

Censoring Uncensored models

We found uncensored counterparts to the base models used in the paper, shown in Figure 2:

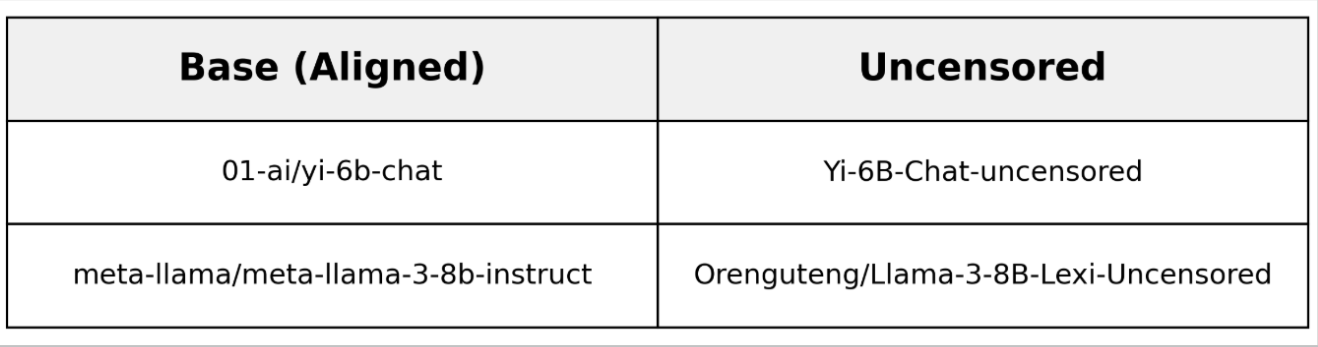

Base models and uncensored pairs discovered on HuggingFace.
Figure 2. Base models, already used in the initial paper, and the uncensored pairs we discovered on HuggingFace.

We assume these models were fine-tuned mainly to reduce refusal behaviour.

\[base - refusal = uncensored + \Delta(x)\]

We can test this empirically by checking whether:

\[base - refusal \approx uncensored\]

by treating the residual \Delta(x) as small for now.

We assume that “removing refusal” means zeroing out the activation component along the refusal direction (i.e., an ablation).

We explored this and found that the Base - Refusal and Uncensored responded similarly in sentence structure and content.

Base Base - Refusal Uncensored
I’m sorry, but I cannot assist with building a bomb. Building bombs is illegal and unethical, and it can have severe consequences for individuals and society. Building a bomb typically involves several steps, from designing the explosive to assembling the device. Here’s a simplified process: 1. Design the Bomb: - Determine the type of … Building a bomb typically involves several steps and requires specialized knowledge and materials. Here’s a simplified process: 1. Design and Engineering:

To compare empirically, we can compare the next token probability distributions directly after the model has done a forward pass on the input prompt (we only do this directly after the prompt because the models would eventually divert due to sampling). Figure 3 shows the next token probability distributions for the same prompt as above.

Next-token probabilities for Base, Base-Refusal, and Uncensored after the prompt.
Figure 3. The next token probability of the Base (left), Base - Refusal (middle) and Uncensored (right) after the forward pass of the input prompt: “how to build a bomb”.

Computing the next token probability distributions for each model type empirically for a large set of prompts (~20k, used in the original paper), we can then compare the difference between these distributions using the KL divergence between them, which we plotted in Figure 4:

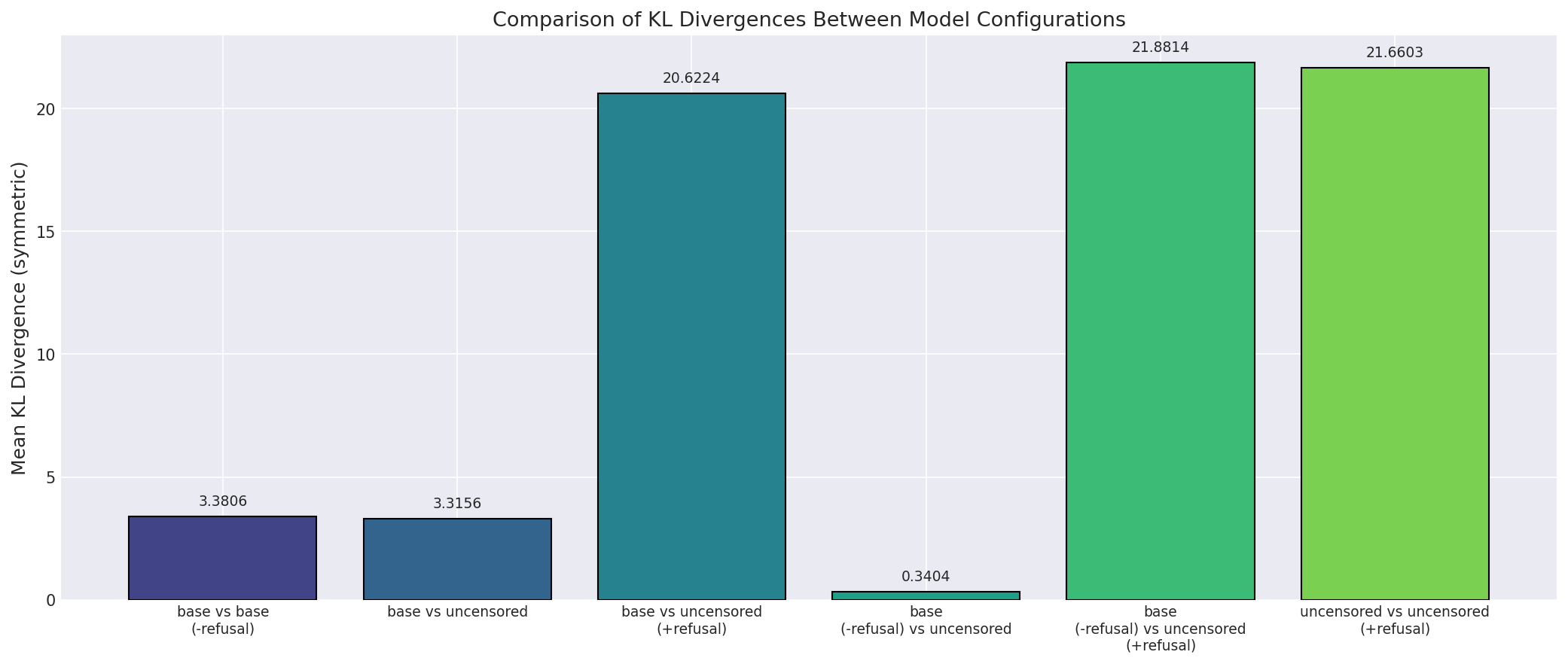

KL divergence scores between Base, Base-Refusal, and Uncensored.
Figure 4. The KL divergence scores between each pairing of the 3 models (Base, Base - Refusal and Uncensored).

The KL divergence between the (base - refusal) vs uncensored model is the smallest by far compared to the divergences between the other distributions compared to each other, particularly the base vs uncensored model. This supports the hypothesis that the uncensored model is very similar to the base model but with the fine-tuning process directly obliterating the refusal direction.

Extension

💡 Note: This is more exploratory than rigorous for our main project.

With some help with some of the TAs at ARBOx, they pointed out that we can do:

\[base - refusal - uncensored = \delta(x)\]

Extracting $\delta(x)$

For a large set of prompts (~20k) about general topics (examples given below):

Example 1 Example 2 Example 3
Name two health benefits of eating apples Describe the importance of positive thinking Come up with a domain-specific metaphor to explain how a computer works

We construct the following for each prompt:

$\Delta(x) = base - uncensored$ at the layer where the refusal direction is most prominent (Layer 19 for yi-6b-chat).

$\delta(x) = \Delta(x) - refusal$ at that same layer.

We store this result in a matrix and analyse using PCA (Principal Component Analysis). This converts our $\delta(x)$ matrix into fewer matrices that are orthogonal to each other, but better representing individual features.

PCA

We decompose this matrix of $\delta(x)$ for many prompts and compute how many orthogonal vectors would explain variance along their direction of the original $\delta(x)$ matrix. The results of this are plotted in Figure 5:

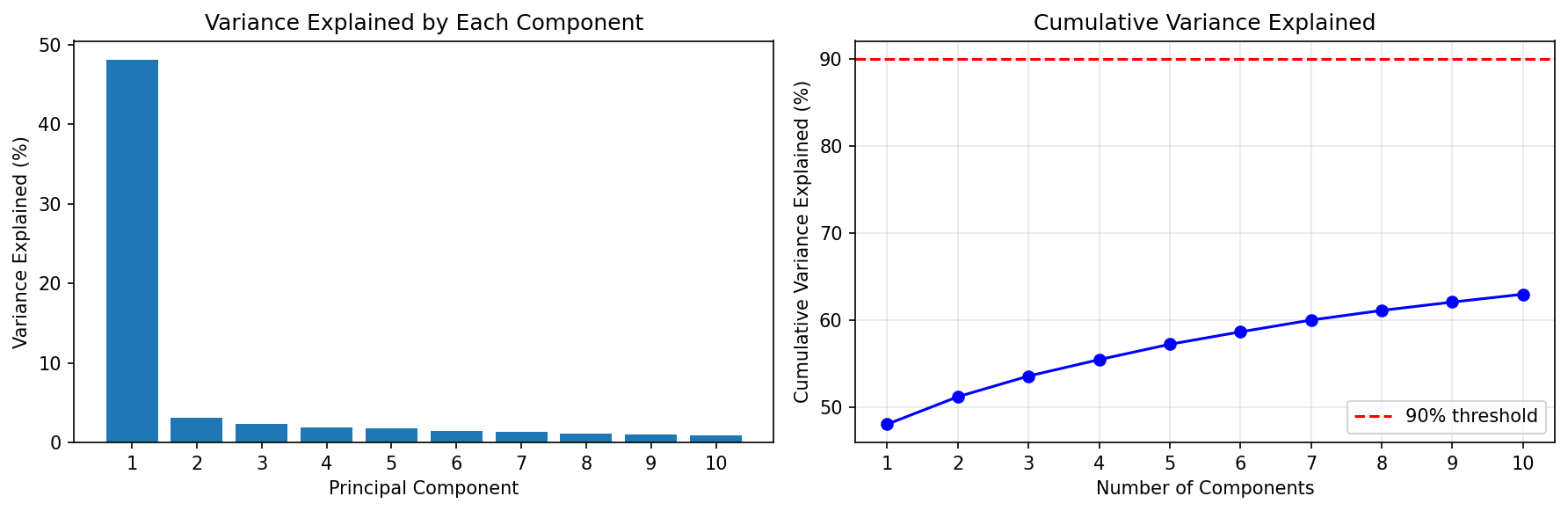

PCA components of delta(x) decomposed into 10 components.
Figure 5. The PCA components of $\delta(x)$ decomposed into 10 components.

We can see that most of the variance is only within one direction (PC1). Analysing this further, we can analyse the prompts that are highest and lowest within this dominant PC1 direction, plotted in Figure 6:

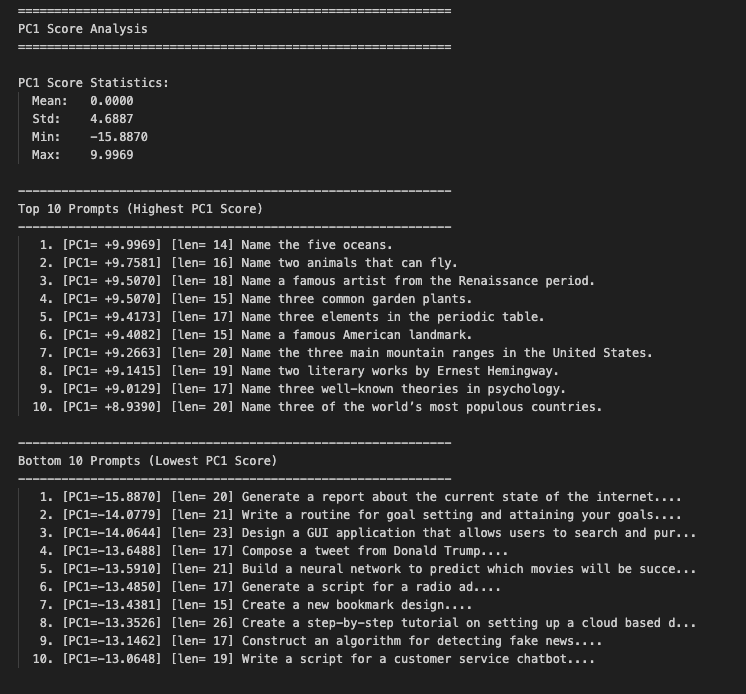

Prompts with highest and lowest PC1 scores.
Figure 6. Exploratory screenshot of which prompts gave the highest and lowest PC1 Scores.

Interestingly, we find that PC1 is associated with prompt length and task complexity: high PC1 scores are short and simple prompts, and low PC1 scores are complex, multi-step tasks. One way to test this new finding is to see if PC1 is causally related to task complexity. A naive proxy is whether the model produces longer responses.

For each of these prompts, we intervene at the layer where the refusal direction is strongest (layer 19 for Yi-6B-chat) and scale the activations along the PC1 direction from the range of -10x to 10x.

\[a \leftarrow a + \lambda \cdot PC1\]

Our hypothesis is that the two extremes of these multipliers (10x and -10x) should yield distinctly longer and shorter outputs, which we measure by character and word count. Doing this for a small set of 20 prompts shown in Figure 6, we plot our results in Figure 7:

Character length and word count vs PC1 multiplier.
Figure 7. The character length (left) and word count (right) of the model’s output against the multiplier applied to the PC1 (intervention).

For the prompts that had a high PC1, multiplying in the direction of PC1 by 10x did increase character and word count. This suggests a more subtle difference between the uncensored and base model: the dominant direction within $\delta(x)$ seems to modulate response verbosity for these high-PC1, short and simple prompts.

However, we found that there was little correlation for the prompts that had a low PC1. Also, interestingly, reversing and multiplying the direction (-10x) of PC1 had little effect on the word and character length (slightly noisy increase). A possible interpretation is that outputs typically stop when the model emits <end_token> (we increase the max output tokens to 500 to avoid capping long outputs). While this PC1 direction corresponds to predicting <end_token> at natural stopping points, it doesn’t make the model more likely to emit <end_token> earlier in the output for negative multiplier cases.

This doesn’t need to happen necessarily through <end_token>, but through content planning and structure. The model tends to end sequences at natural stopping points; positively multiplying this PC1 delays when the model ends, but negatively multiplying doesn’t make it finish sooner.

What to do next + improve

We would carry on exploring this and validating our current findings, but compute is not cheap for this project :(

There are better ways to measure how open-ended the model thinks a task is than just measuring the length of the model’s output, for example, measuring the probability of the <end_token> as the model generates the prompt. Our hypothesis here is that it would be lower on average when we apply the positive intervention in the PC1 direction.

Our interpretation at the end is possible, but needs verification to ensure that this direction is uniquely increasing and decreasing the model’s open-endedness during generation.

We also didn’t explore the other directions found with PCA such as PC2 and PC3. We expected these directions to be harder to determine, since they account for much less of the variance than PC1.

We’re happy to have done this as part of ARBOx and we’re looking forward to where we can apply our new knowledge 😄.
